Home / Products / COB LED Strip
SS-COB-320-24V-10WDot-free linear light — seamless, even without a profile.
COB (chip-on-board) technology mounts LED chips directly on the PCB and covers them with a uniform phosphor layer. The result is one continuous line of light with zero hotspots — ideal for shallow coves, mirrored furniture and high-end retail where the strip is visible.
| Voltage | 24 V DC |
| Power | 8–16 W/m |
| LED density | 320–528 chips/m |
| CRI | ≥90 (95 optional) |
| CCT | 2700–6500 K, tunable |
| IP rating | IP20 / IP65 / IP67 |
| Warranty | 5 years |
Full parameter list for every standard model — custom parameters available on request.
| Model | Voltage | Chips/m | Power | Luminous flux | CCT | CRI | IP |
|---|---|---|---|---|---|---|---|
| SS-COB-320-24V-10W | 24 V DC | 320 | 10 W/m | 950 lm/m | 2700–6500 K | ≥90 | IP20 |

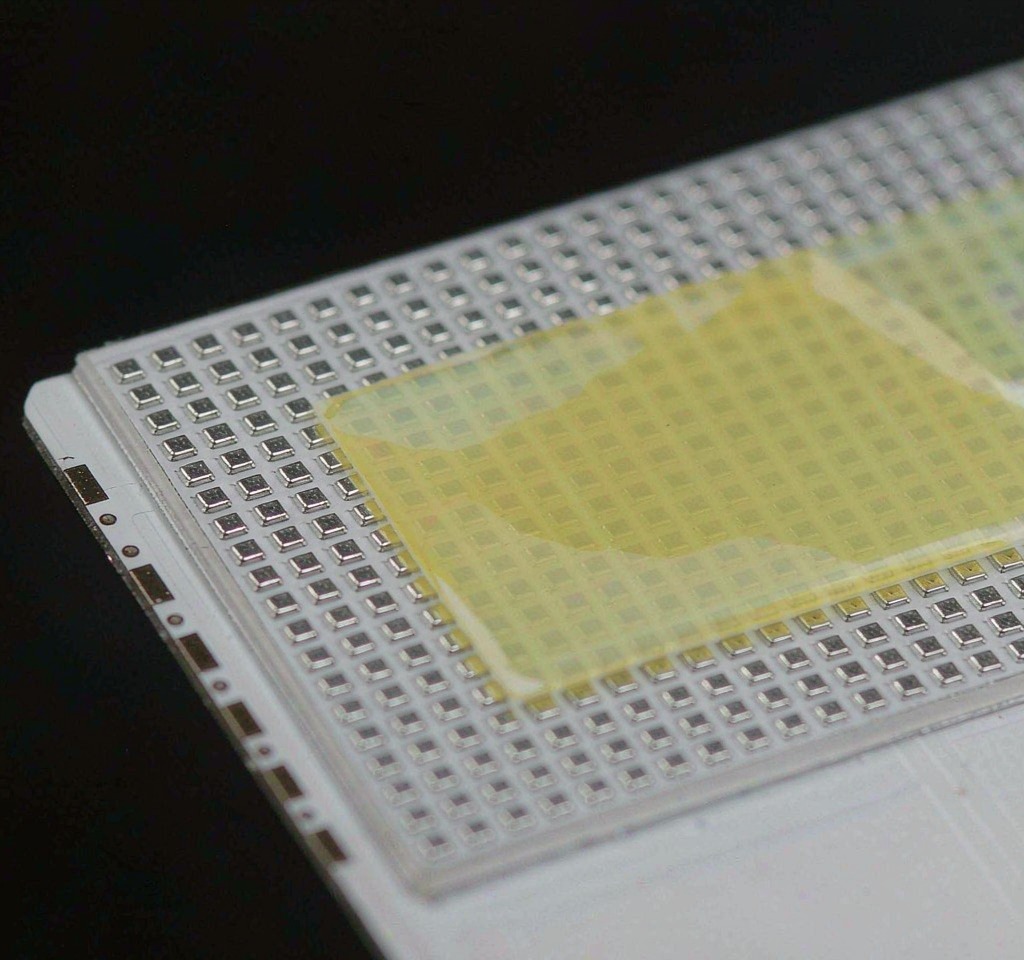

| SS-COB-384-24V-12W | 24 V DC | 384 | 12 W/m | 1150 lm/m | 2700–6500 K | ≥90 | IP20 |

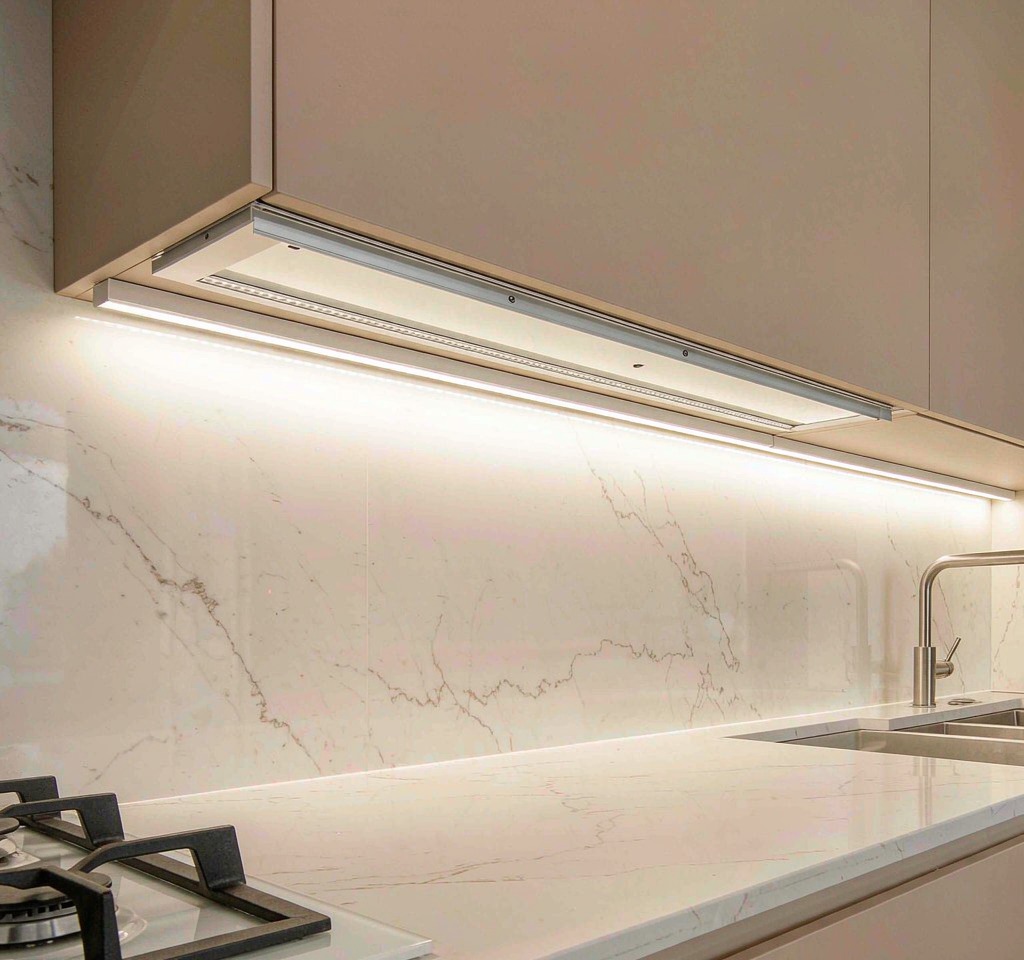

| SS-COB-480-24V-14W | 24 V DC | 480 | 14 W/m | 1350 lm/m | 2700–6500 K | ≥90 (95 opt.) | IP20 |

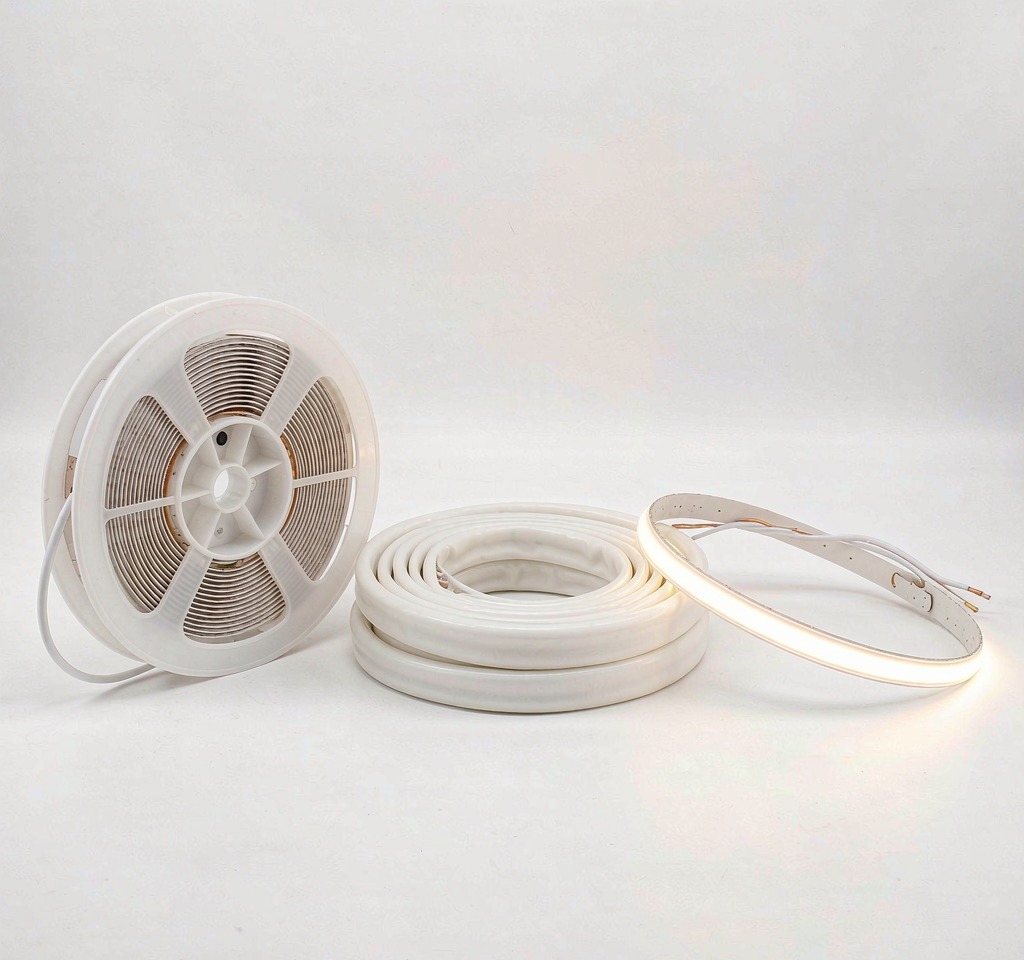

| SS-COB-528-24V-16W | 24 V DC | 528 | 16 W/m | 1500 lm/m | 2700–6500 K | ≥90 | IP20 |
| SS-COB-480-IP65 | 24 V DC | 480 | 14 W/m | 1300 lm/m | 2700–6500 K | ≥90 | IP65 |
| SS-COB-480-IP67 | 24 V DC | 480 | 14 W/m | 1300 lm/m | 2700–6500 K | ≥90 | IP67 |
SS-COB-384-24V-12W
SS-COB-480-24V-14W

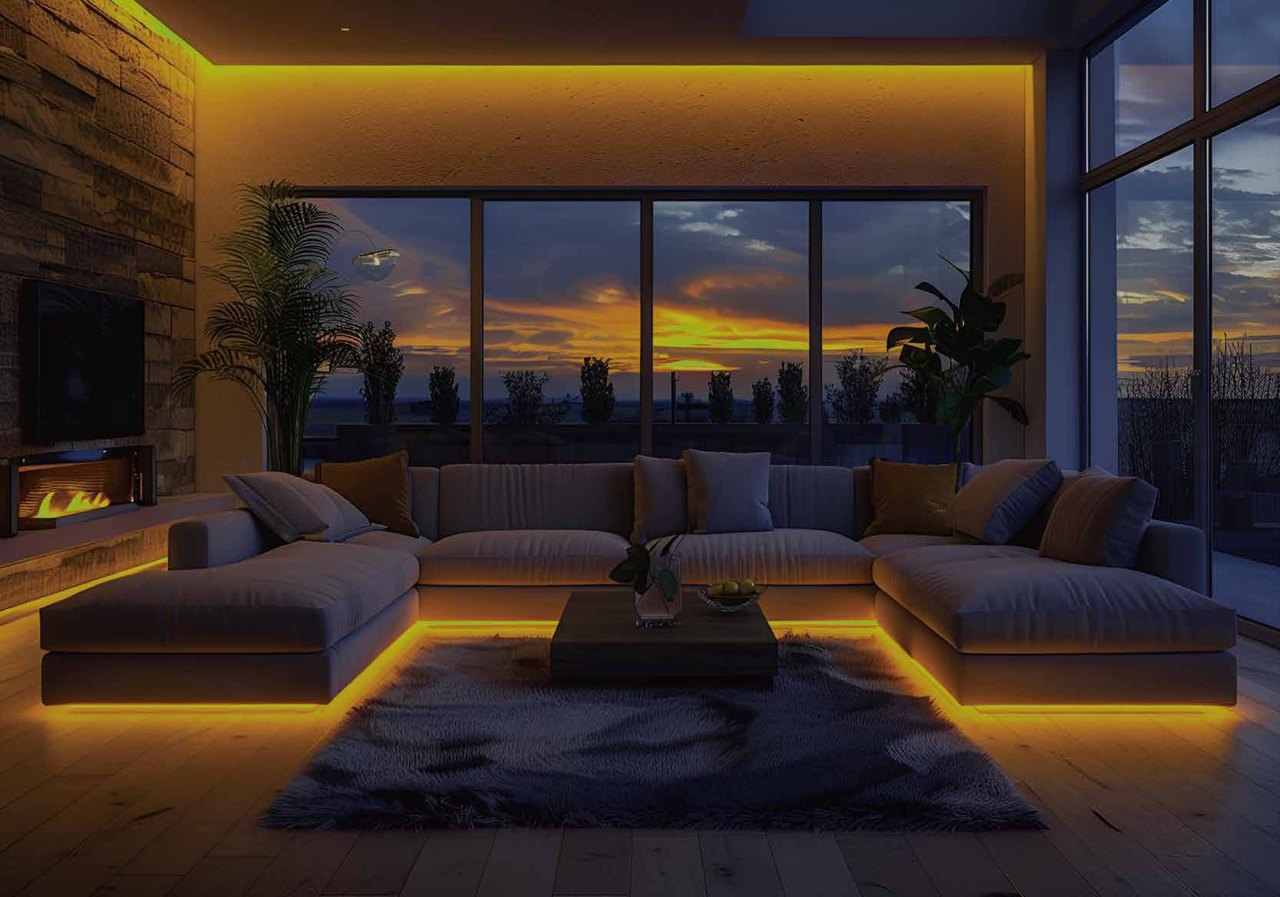

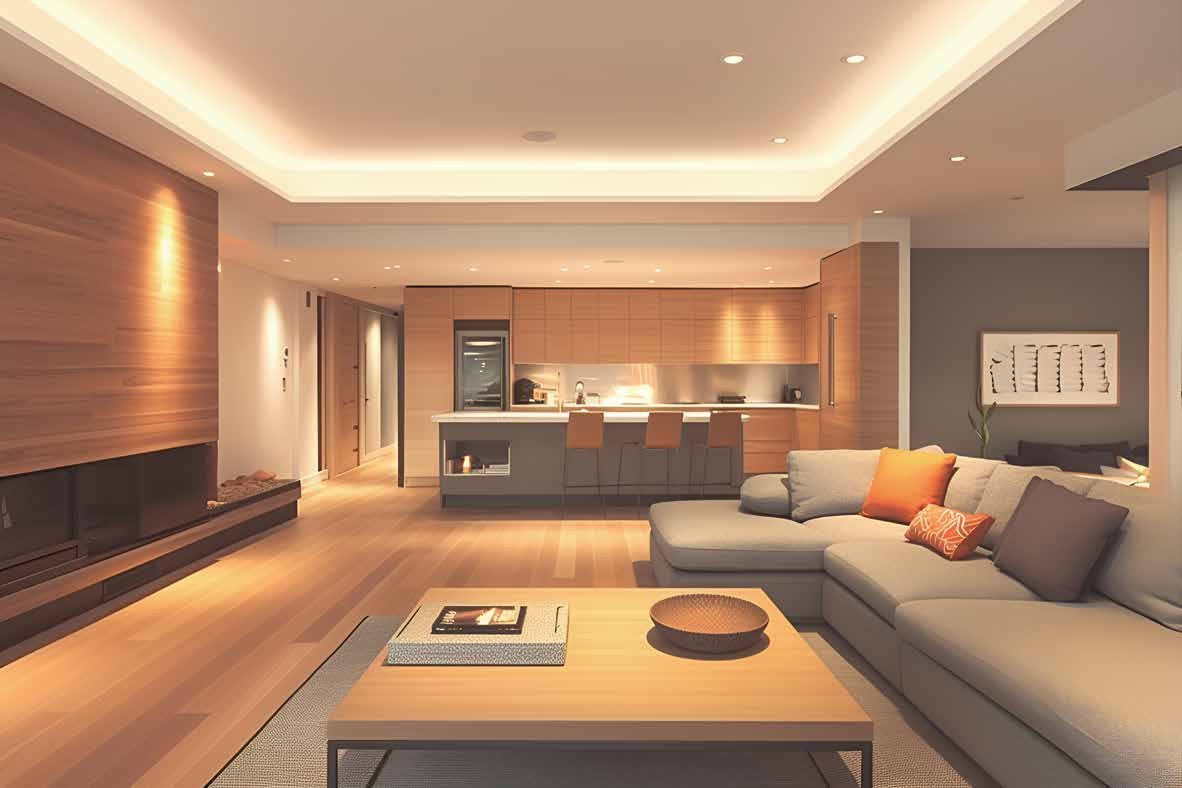

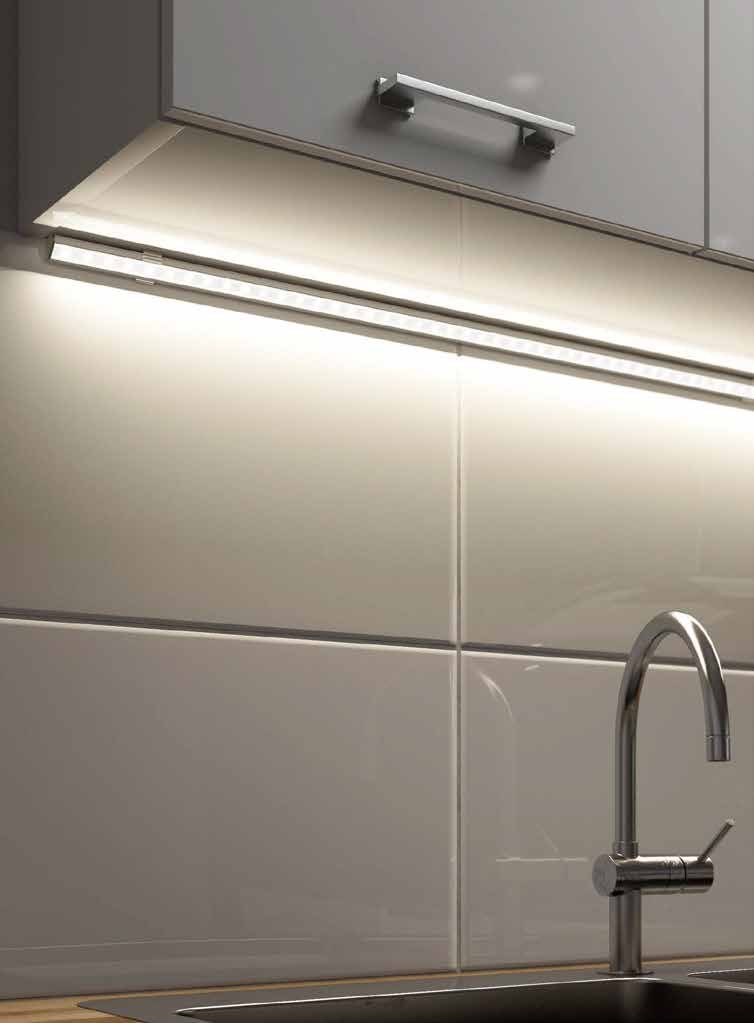

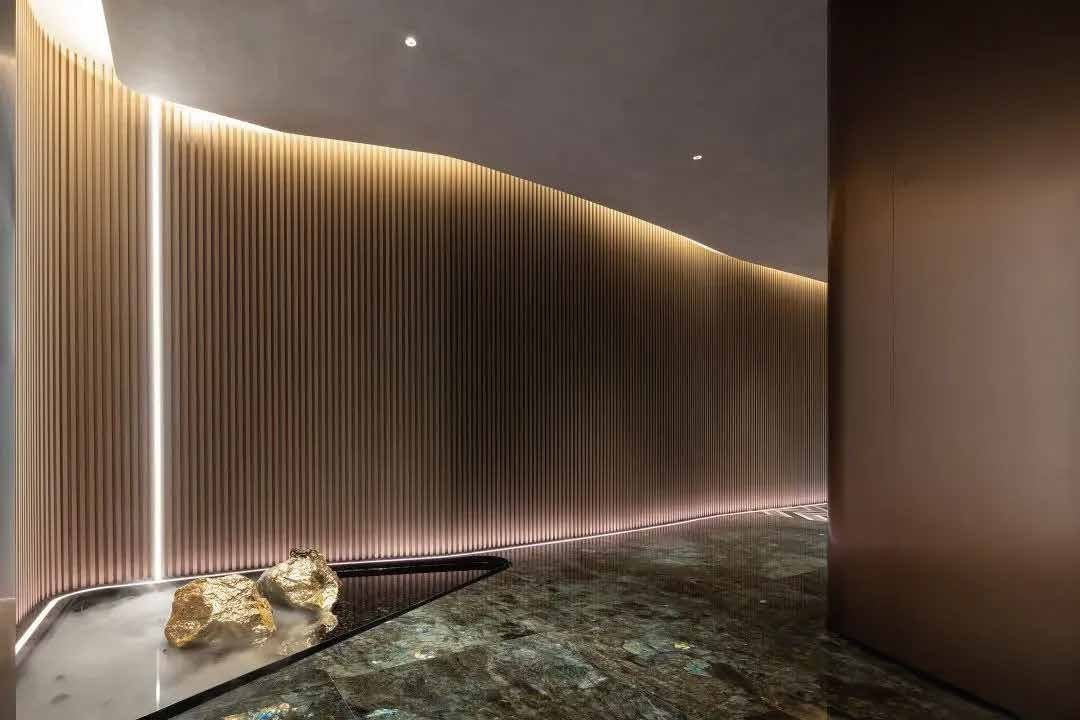

SS-COB-528-24V-16WReal installation scenes of our cob led strip — reference designs we can quote and replicate for your project.
Send your specification — engineers reply within 24 hours. Samples in 3 days.
Get a Quote
