SS-MD-2835-1L-12VRigid & flexible modules for light boxes, signage and backlighting.
Injection and rigid LED modules with lenses from 160° to 175°, designed for channel letters, fabric light boxes and sign cabinets. 3-chip SMD options, 12 V constant voltage, IP65 potting and self-adhesive or screw mounting for fast sign installation.
| Voltage | 12 V DC |
| LEDs | 1–6 SMD per module |
| Beam angle | 160° / 170° lens |
| IP rating | IP65 / IP67 |
| Colors | White, RGB, dream color |
| Warranty | 3 years |
Full parameter list for every standard model — custom parameters available on request.
| Model | Voltage | LEDs | Power | Beam angle | IP |
|---|---|---|---|---|---|
| SS-MD-2835-1L-12V | 12 V DC | 1×2835 | 0.24 W | 160° lens | IP65 |
| SS-MD-2835-2L-12V | 12 V DC | 2×2835 | 0.48 W | 160° lens | IP65 |
| SS-MD-2835-3L-12V | 12 V DC | 3×2835 | 0.72 W | 160° lens | IP65 |
| SS-MD-5050-3L-12V | 12 V DC | 3×5050 | 1.44 W | 170° lens | IP67 |
| SS-MD-5050-4L-12V | 12 V DC | 4×5050 | 1.92 W | 170° lens | IP67 |
| SS-MD-2835-6L-12V | 12 V DC | 6×2835 | 1.44 W | 160° lens | IP67 |
| SS-MD-2835-3L-IP67 | 12 V DC | 3×2835 | 0.72 W | 160° lens | IP67 |
| SS-MD-RGB-4L-12V | 12 V DC | 4×5050 RGB | 1.92 W | 160° lens | IP65 |

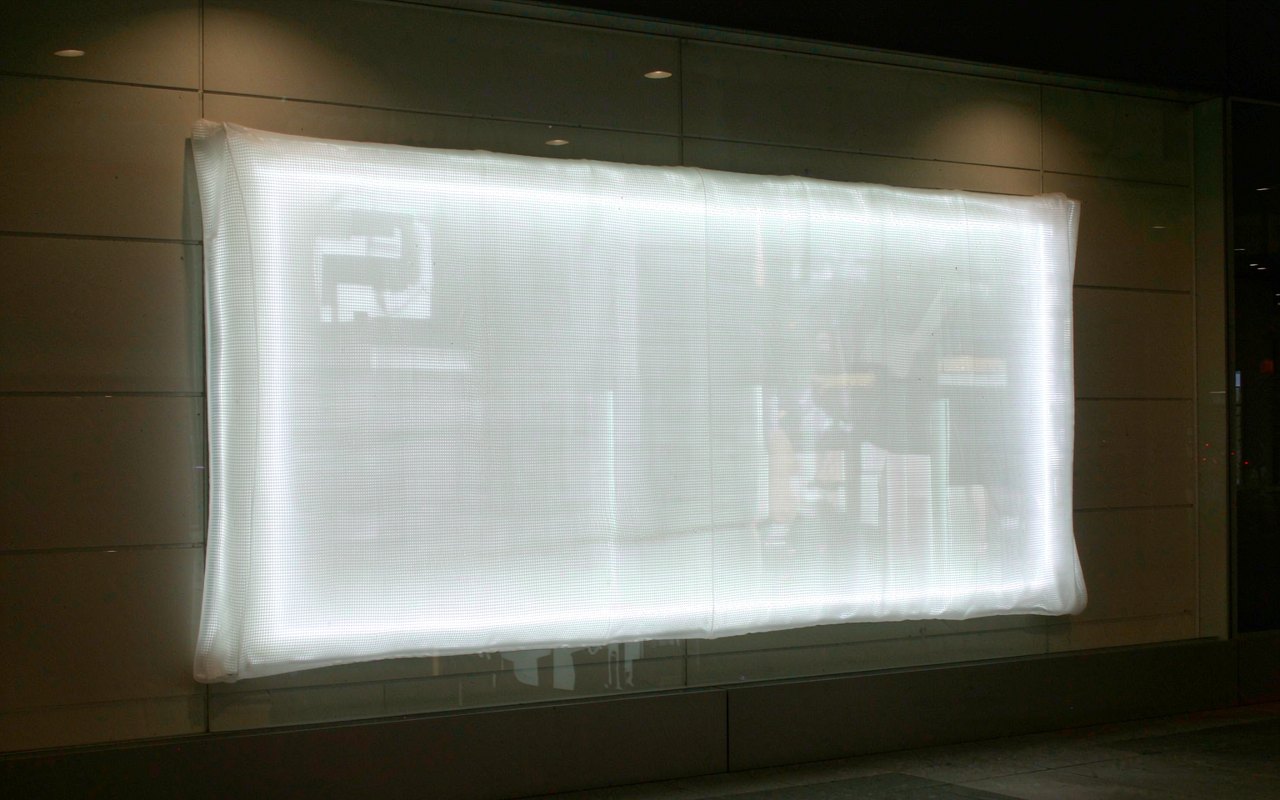

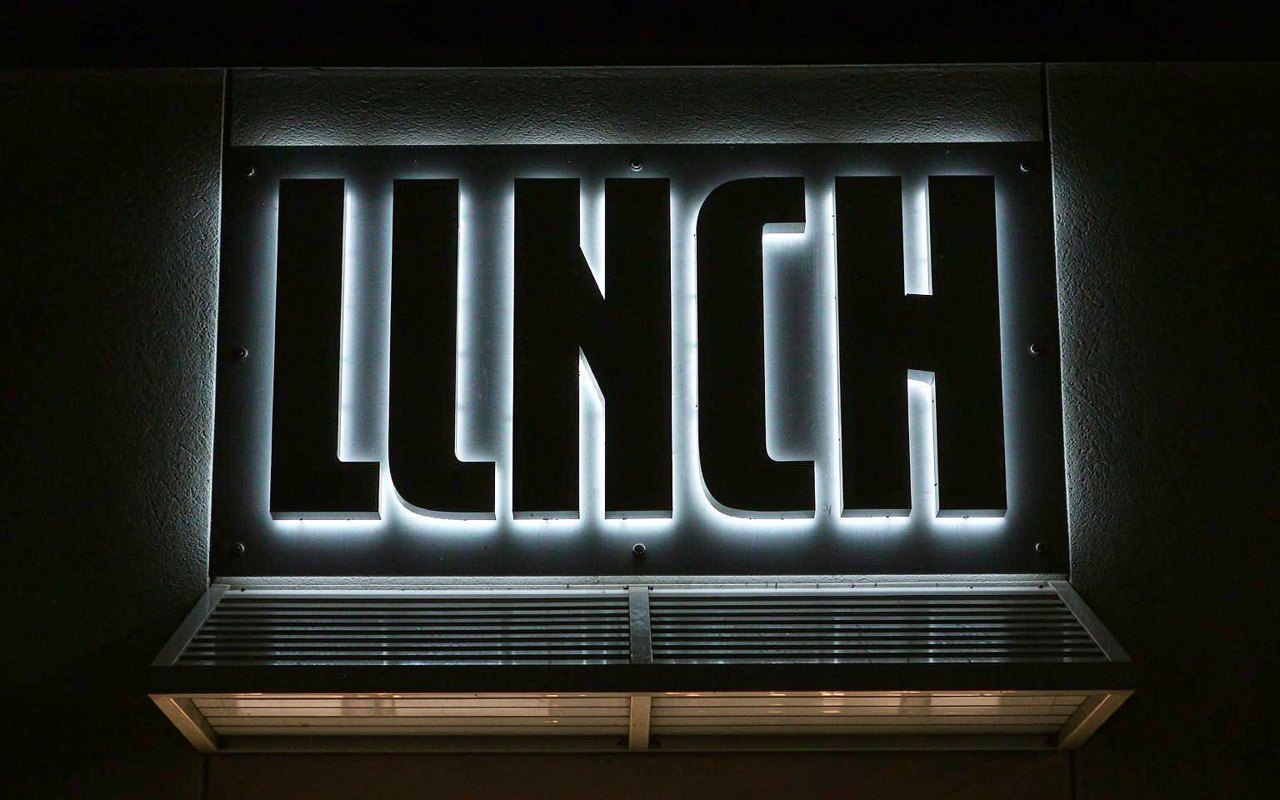

Real installation scenes of our led module — reference designs we can quote and replicate for your project.
Send your specification — engineers reply within 24 hours. Samples in 3 days.
