Tunable White LED Strip (2700K–6500K)
Dual-channel warm-to-cool white strip for human-centric lighting scenes, dim-to-warm behavior and dynamic daylight simulation.
14.4W/m (dual channel) · DC24V · IP20 / IP65
Troubleshooting
My strip works on full power but flickers or dies when dimmed
This is a dimmer/driver matching problem. Match the dimming protocol first, then the load.
What we need to confirm it
- Dimmer brand/model, dimming protocol, minimum dim level, driver model?
Diagnosis
Cause, then fix
Incandescent-style dimmer on LED
Leading-edge dimmers need a load high enough to sustain the arc; LED load is far lower.
Fix: Trailing-edge / PWM dimmer rated for LED, or a dedicated LED driver dimmer.
DALI / 0-10V without a driver that accepts it
The driver must be dimmable, not just the control.
Fix: Specify driver protocol together: DALI, 0-10V, 1-10V, PWM or DMX decoder.
Very low dim level below the strip's range
Below 5-10% output the LED count and bin variation show as colour shift.
Fix: Limit the scene to 10% minimum, or use a driver with a defined dimming floor.
Spec that avoids this
Strips used to build it properly

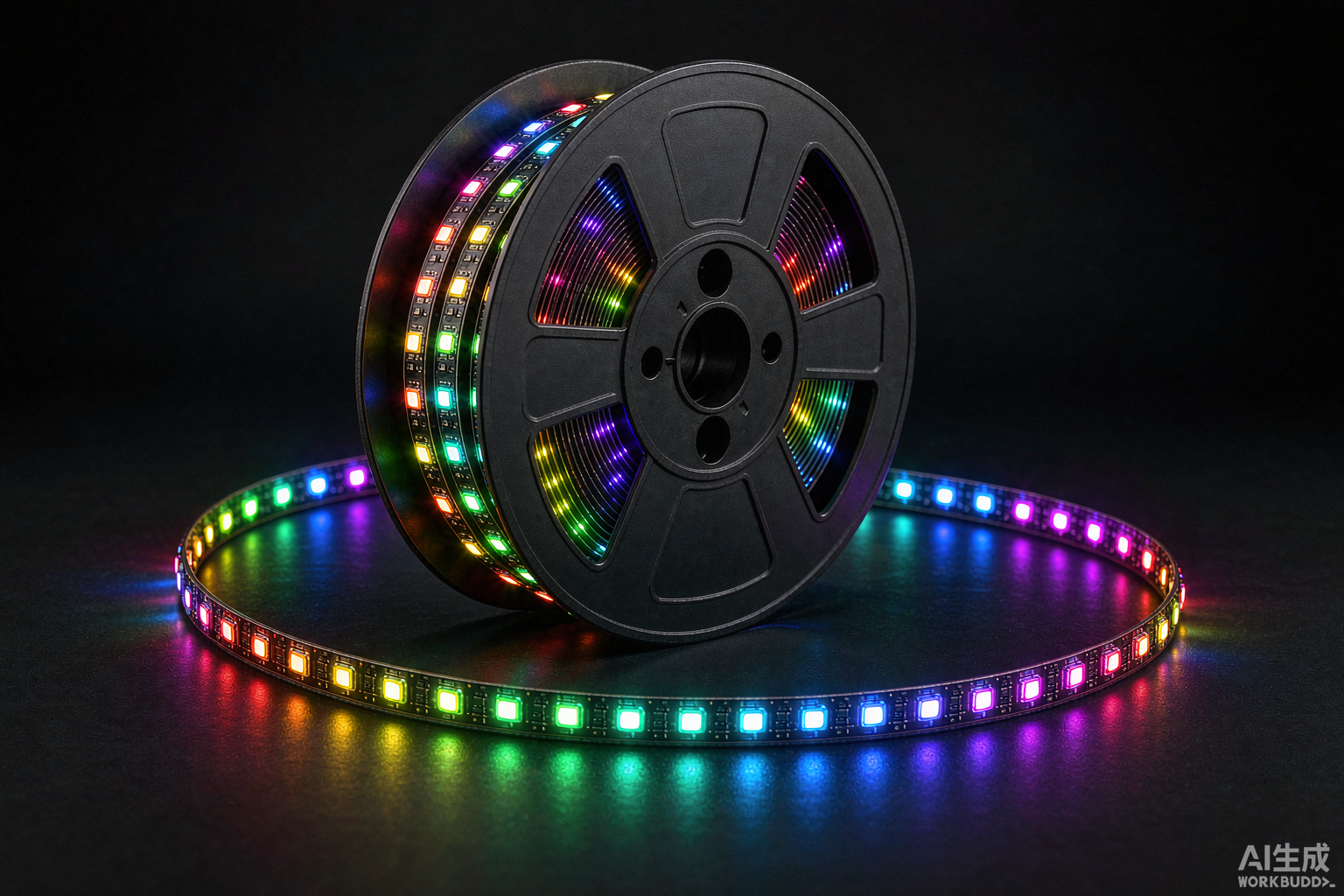

DMX512 LED Strip
DMX512-addressable strip with built-in decoding for professional stage, media facade and entertainment installations.
14.4W/m (RGB) · DC24V · IP20 / IP65 / IP67

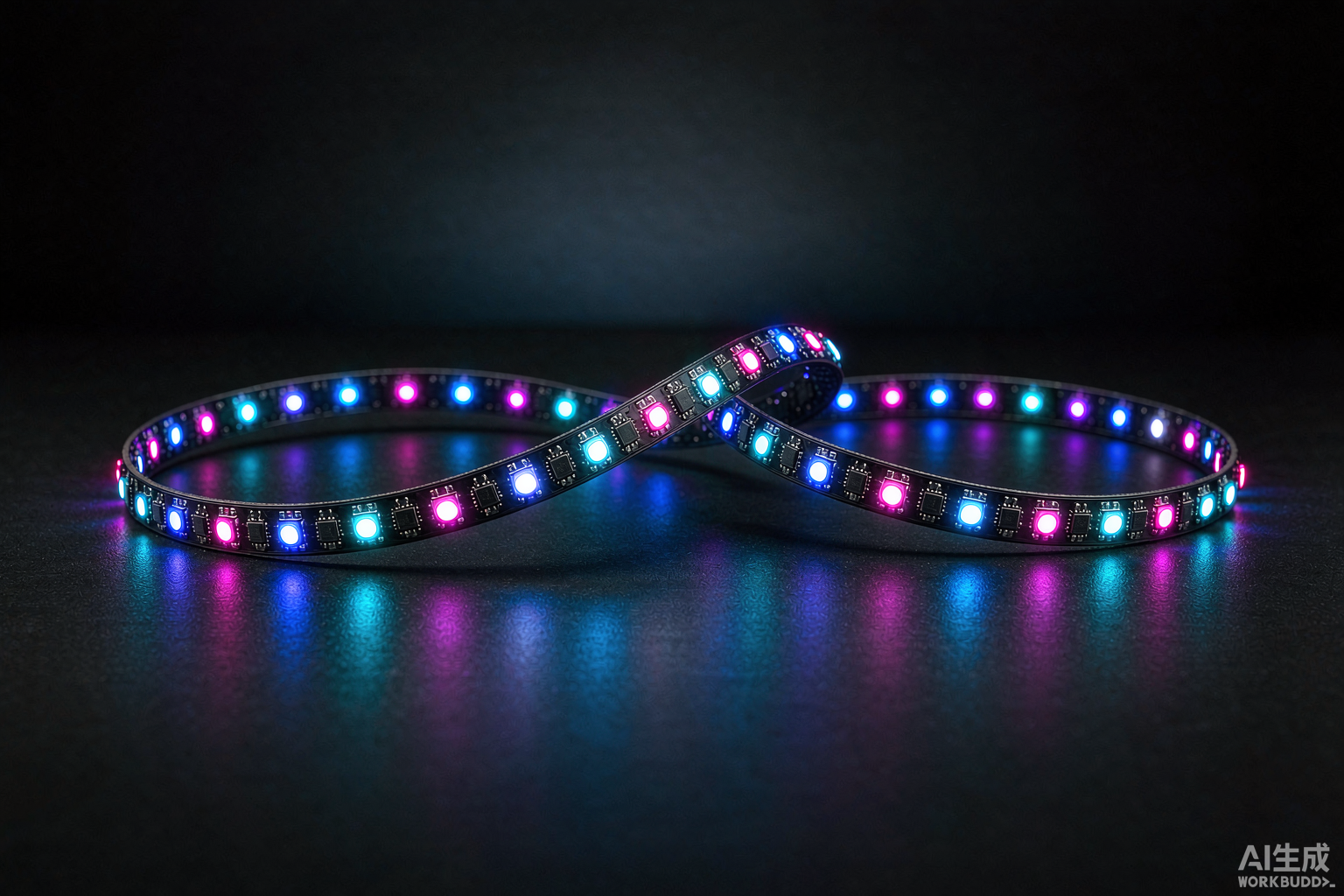

Addressable Pixel LED Strip (WS2812 / SK6812)
Individually addressable pixel strips for animated effects, creative installations and interactive lighting.
10W/m (60 pixels, DC5V) · DC5V / DC12V / DC24V · IP20 / IP30 / IP65 / IP67
Related fixes
Pick a strip that will not do this
Tell us the run and the driver you already have. We quote a combination that is compatible, not just cheap.
