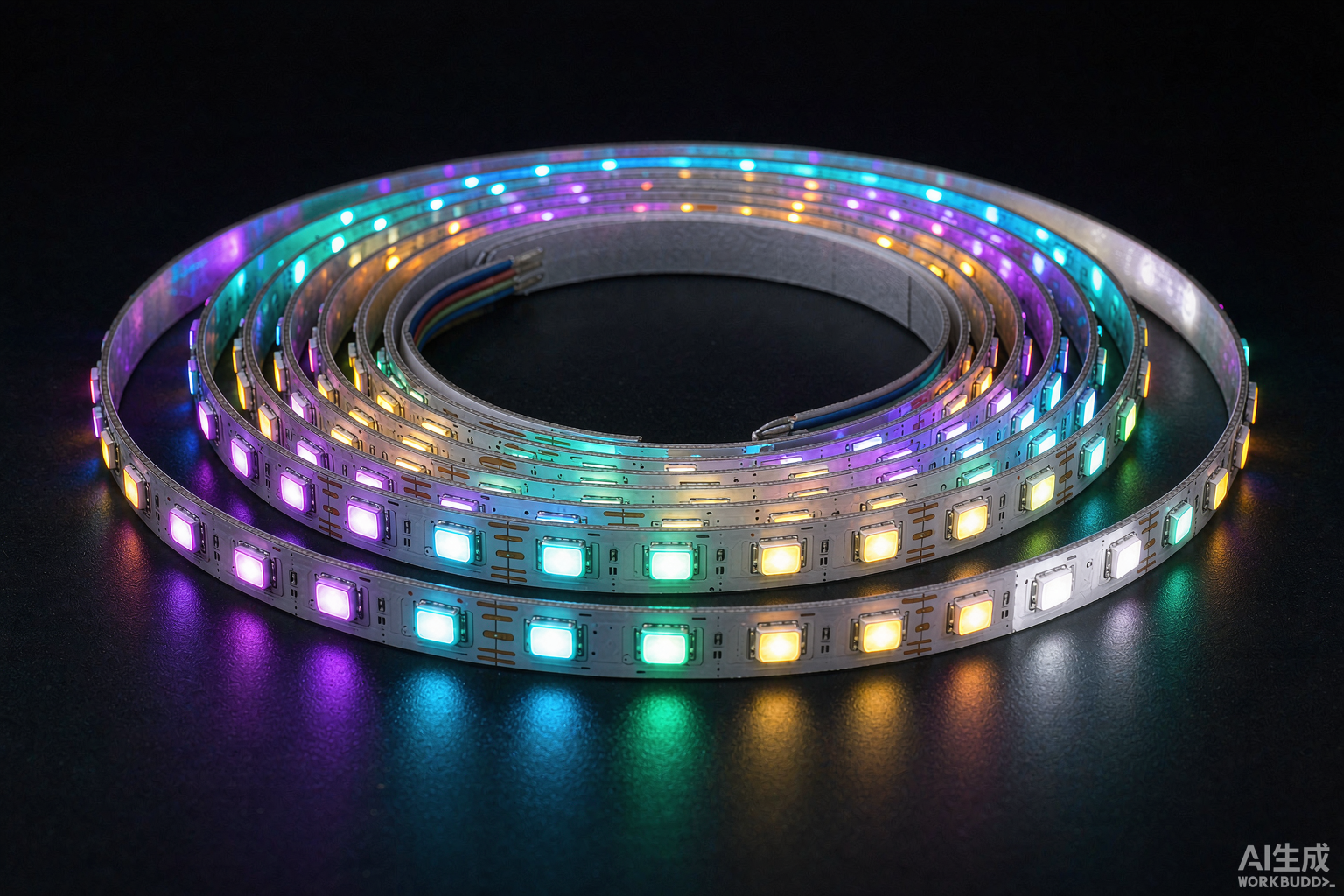

RGBW LED Strip 4-in-1
4-in-1 RGBW chip delivers saturated colors plus true white in one strip — no color compromise for architectural scenes.
19.2W/m · DC24V · IP20 / IP65 / IP67
Troubleshooting
Why don't all my RGB / RGBW strips show the same colour?
Colour mismatch between reels is a binning issue, not a controller issue. Order one production batch and you get one answer.
Diagnosis
Cause, then fix
Different production batches
LED bins vary. Reels from two batches can differ by one bin — invisible in a showroom, obvious in a 200 m hotel corridor.
Fix: Order all project reels in a single production batch and lock the CCT/CRI in the PO.
Layered / adjacent strips with different CRI
Mixing Ra80 with Ra90 side by side is readable in 30 seconds on site.
Fix: Specify one CRI for the whole project.
Controller output offset
Some controllers need a calibration step; without it, channels differ slightly between segments.
Fix: Set all segments to the same address, then compare against a reference reel saved as a sample.
Voltage drop making colours differ
Dimmer LEDs at the far end shift hue on colour-changing strips.
Fix: Fix the voltage drop first — colour consistency follows power consistency.
Spec that avoids this
Strips used to build it properly
Addressable Pixel LED Strip (WS2812 / SK6812)
Individually addressable pixel strips for animated effects, creative installations and interactive lighting.
10W/m (60 pixels, DC5V) · DC5V / DC12V / DC24V · IP20 / IP30 / IP65 / IP67
DMX512 LED Strip
DMX512-addressable strip with built-in decoding for professional stage, media facade and entertainment installations.
14.4W/m (RGB) · DC24V · IP20 / IP65 / IP67
Pick a strip that will not do this
Tell us the run and the driver you already have. We quote a combination that is compatible, not just cheap.
