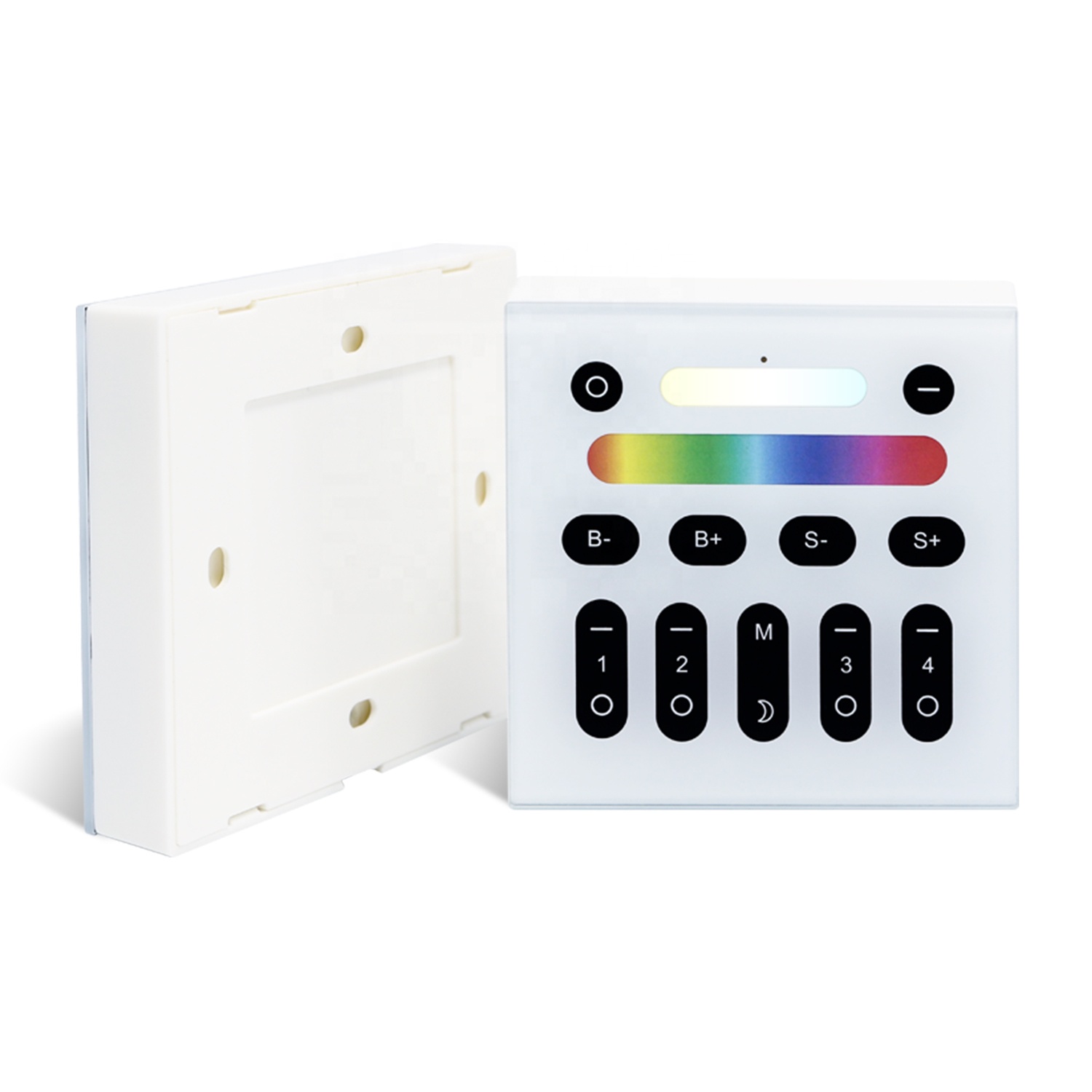

Flush-mount tempered-glass touch panel for RGB+CCT strip: colour wheel, CCT slider and brightness on the wall, with four independent zones. RF 2.4 GHz output drives receivers up to 30 m away and passes through walls — ideal for whole-floor lighting control.
Typical values shown. Custom density, CCT, CRI, IP rating, connector and packing on request — see Custom / OEM / ODM.
2.4G RF, WiFi, Zigbee and wall-mounted touch panel controllers for single-color, CCT, RGB, RGBW and RGB+CCT strips — dimming, colour and zone control for every project size.
Every figure below is a typical value for the standard build. Density, board width, CCT, CRI, IP rating, cut pitch, connector and packing are all made to order — send us the numbers you need and we confirm them in writing with the sample.
| Power | 3A per channel, 12A total (144W at 12V) |
|---|---|
| Voltage | DC12–24V |
| IP rating | IP20 |
| Control type | Capacitive touch, tempered glass panel |
| Input voltage | DC12–24 V (from power supply, not mains) |
| Output | RF 2.4 GHz signal to matching receivers/controllers (not wired to the strip) |
| Zones | 4 zones, unlimited receivers per zone |
| Control distance | ≤ 30 m, auto-transferred between receivers |
| Functions | On/off, brightness ±, CCT ±, colour wheel, scene M key, night mode (60 s delay off) |
| Mounting | Standard 86 × 86 mm wall box, flush mount |
| Dimensions | 86 × 86 × 12 mm |
| Working temperature | -20 °C to +60 °C |
| Certification | CE, RoHS |
| Warranty | 2 years |
The panel is a sender, not a driver: it sends RF commands to receivers wired to the strips.

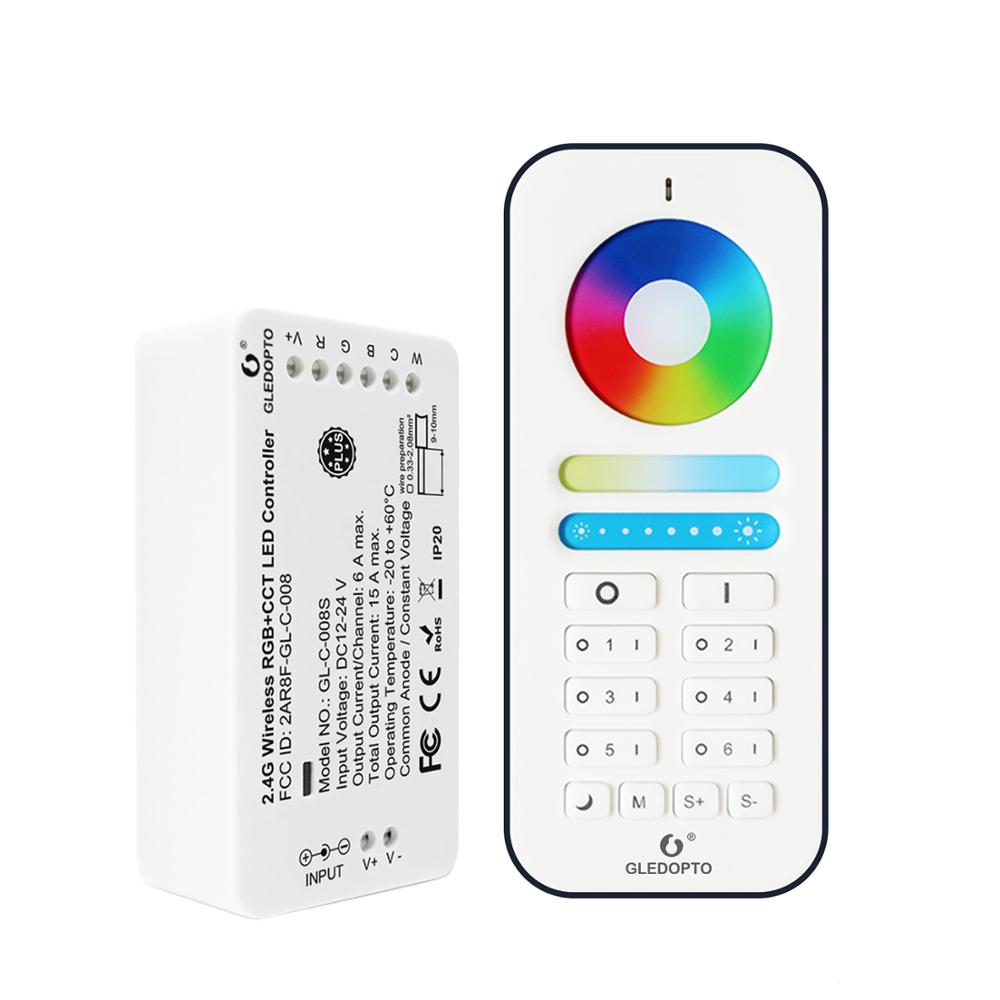

Compact 2.4GHz RF controller for RGB+CCT (RGBW) strip. Touch colour wheel, CCT slider and brightness dimming on the remote, with 30 m control range and zone pairing — no hub, no App, works straight out of the box.
6A per channel, 15A total (72–360W) · DC12V / DC24V · IP20

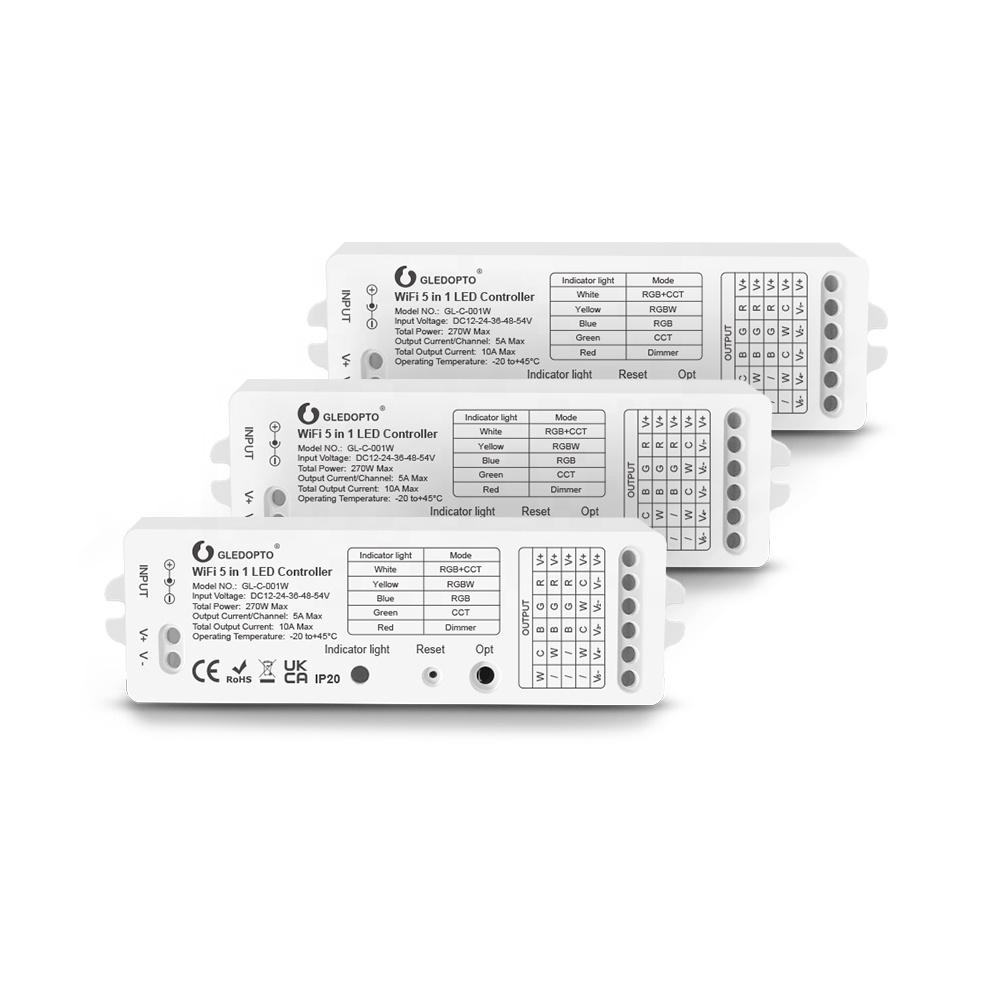

One controller for every strip type: RGB, RGBW, RGB+CCT, CCT and single-colour dimming. Control by Tuya/Smart Life App over 2.4 GHz WiFi, voice via Alexa and Google Assistant, or pair a 2.4 G RF remote — mode and power-on state are configurable.
5A per channel, 10A total, 270W max · DC12–24V (36/48/54V optional) · IP20
Zigbee 3.0 plus 2.4 G RF 5-in-1 controller for RGB, RGBW, RGB+CCT, CCT and dimming strips. Joins any Zigbee 3.0 hub (SmartThings, Tuya and similar) for whole-home automation, and still runs directly from an RF remote without a hub.
5A per channel, 10A total, 270W max · DC12–24V (36/48/54V optional) · IP20
Send quantity, target CCT and delivery market. We answer with spec and price, usually in one working day.
